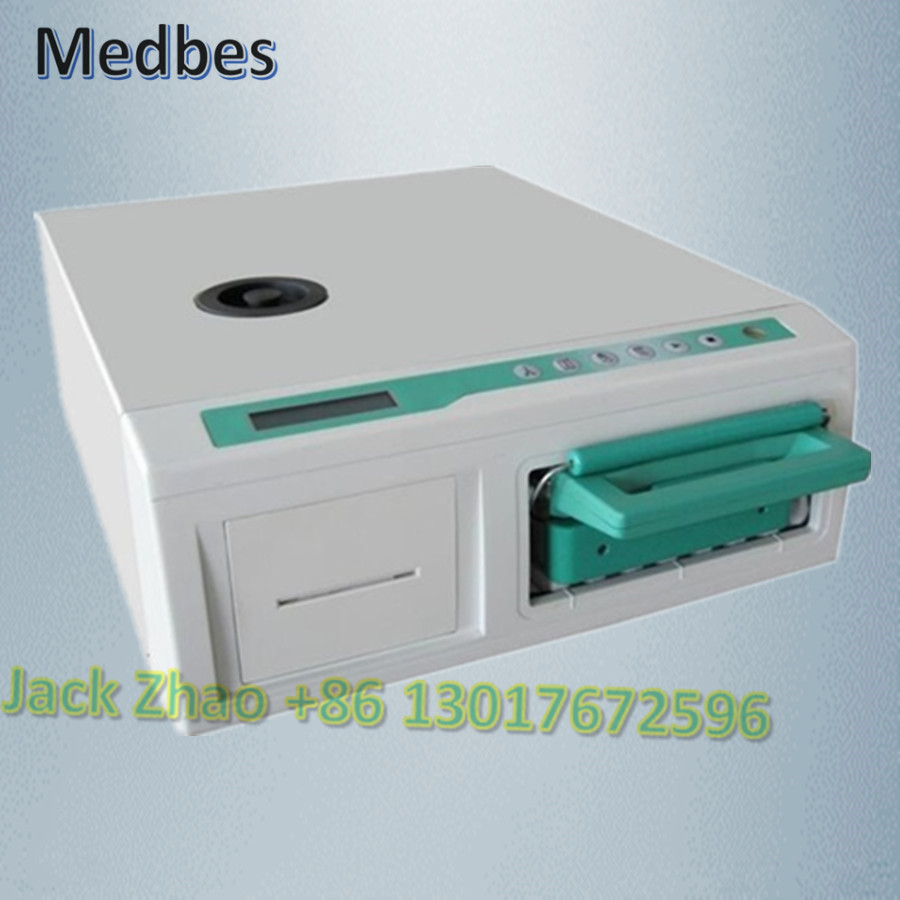

Cassette Autoclave
Features:
The shortest sterilization cycle only needs 6-7 minutes. Compared with the autoclave with a longer sterilization cycle, this quicker autoclave prolongs the life time of the medical appliances relatively, because the cycle time of the sterilized appliances exposed to the high temperature is less.
Three press buttons for different sterilization programs, the time and temperature of sterilization can be set freely according to the user’s needs.
Under the circumstances of unqualified water and water shortage in the tank, it gives an alarm signal and flashes on the display. for the low temperature and the low pressure during the sterilization process, it will stop the sterilization cycle automatically, the error information is displayed and printed at the same time.
Small dimension, light weight, wide ambient working condition, easy to operate . the cassette is also a good medical appliance container for temporary deposit and carry.
Applications:
Quick sterilization for small type medical appliances used in detal clinic,E.N.T and gynaecoloy departments.
After sterilization program selected and start key pressed, the steam generator heats to an optimum temperature, then certain volume of distilled wateris pumped into the generator and immediately converted into steam, a wall of steam is injected into the steam courses through the cassette, the unclean and cold air stored in the cassette at the first beginning is wholly removed.
Sterilization chart :
| Press button | Sterilization temperature | Sterilization time | Dryness time |
| Appliance | 110-135 | 4-99 | 0-99 |
| Package appliance | 110-135 | 4-99 | 0-99 |
| Nonmatal appliance | 110-135 | 4-99 | 0-99 |
Operates easily
Chinese language operation
The sign matches the-printer, but real-time record antiseptic process
The card box’s be ultrathin wall design, causes the warming andthe radiation is quicker
0.22 micron living thing filter
Specifications:
| | Model | M-CA2000 |
| | Machine dimensions | 570*415*170mm |
| | Cassette size(external) | 390*196*40mm |
| | Cassette size(internal) | 280*180*38mm |
| | Chamber volume | 1.8L |
| | Reservoir volume | 3.4L |
| | Electrical rating | AC220V±10%, 50Hz±1Hz 6 A Max 1.3kVA |
| | Steam temperature | 110-135℃(Selectable) |
| Model | M-CA5000 & M-CA6000 |
| Machine dimensions | 580*460*190mm |
| Cassette size (external) | 480*196*80mm/570*210*80mm |
| Cassette size (internal) | 380*180*78mm/480*180*78mm |
| Chamber volume | 5.2L/6.0L |
| Reservoir volume | 3.4L |
| Electrical rating | AC220V±10%, 50Hz±1Hz 6 A Max 1.3kVA |
| Steam temperature | 110-135℃, (Selectable) |
Application:
The Small one is 1.8L,often used in Department of Stomatology and ophthalmology;
The middle one is 5.2L,often used in Surgical instruments sterilization.
And the biggest one is 6L,it's Lengthened,used in Endoscopic instruments.
|
|
